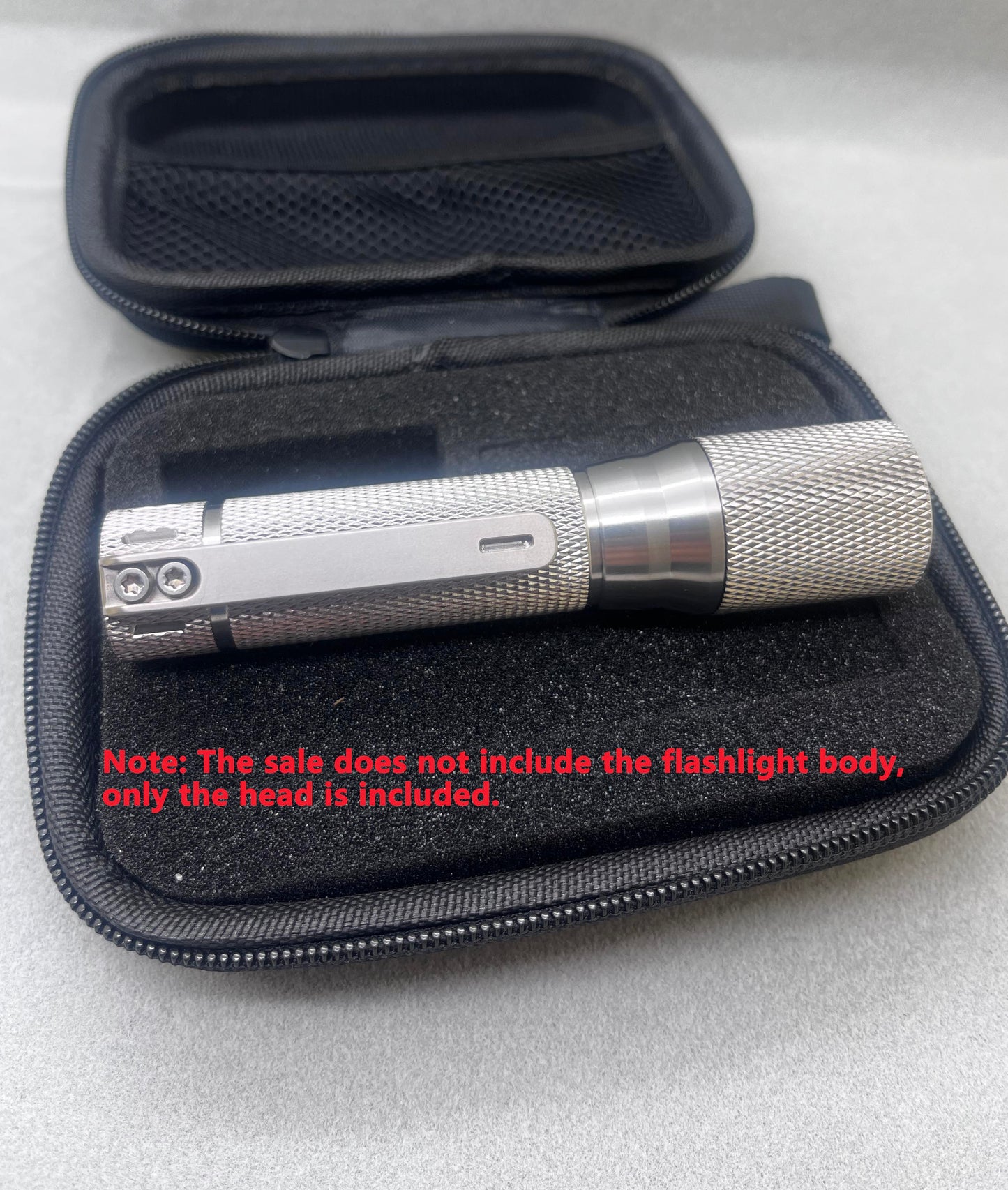

Compatible with the threaded bodies of all Edoluc 14500 flashlights.

Thrower Head Size: 23mm*45mm(H)

LED: SFT25R - 6500K

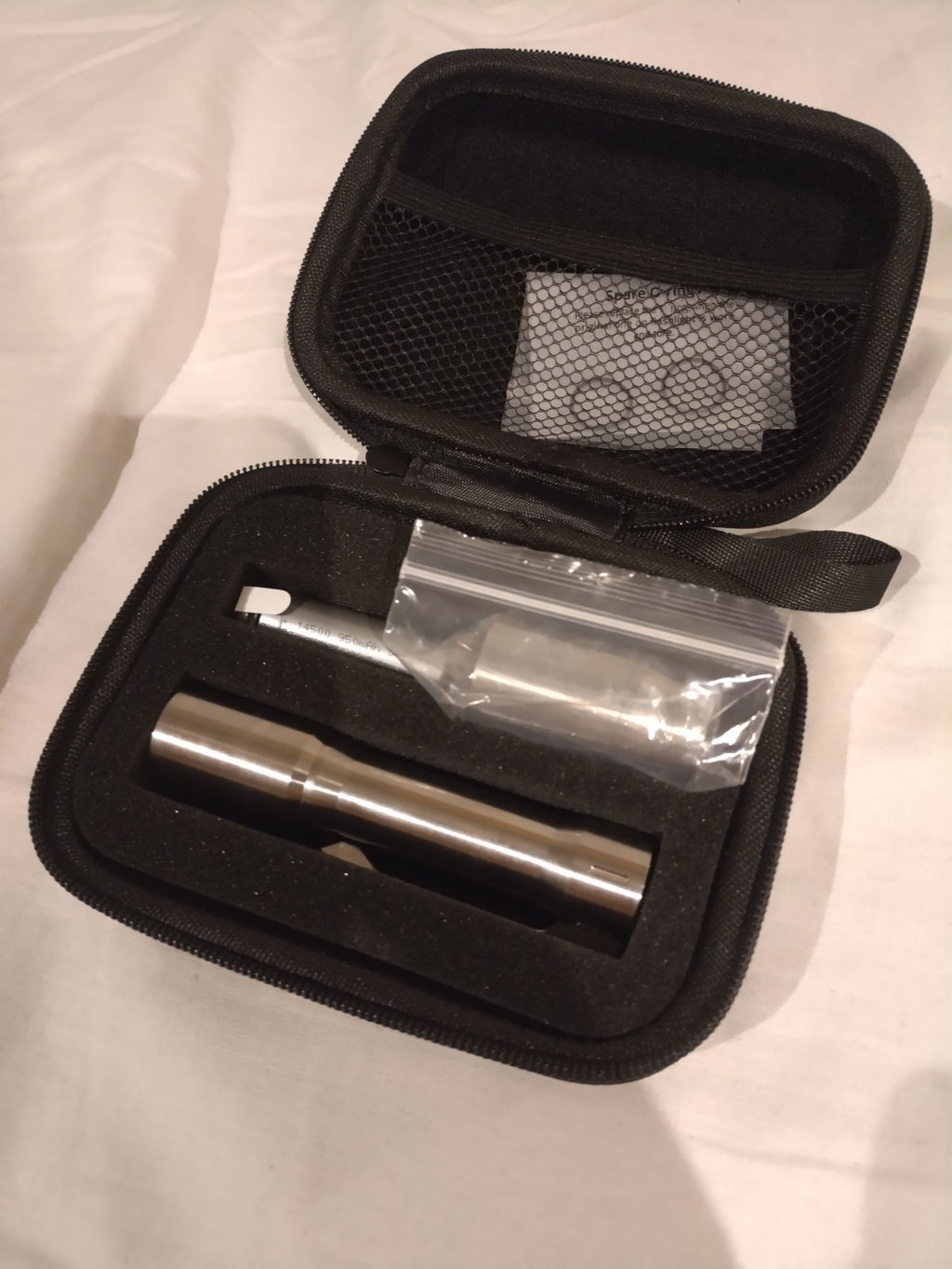

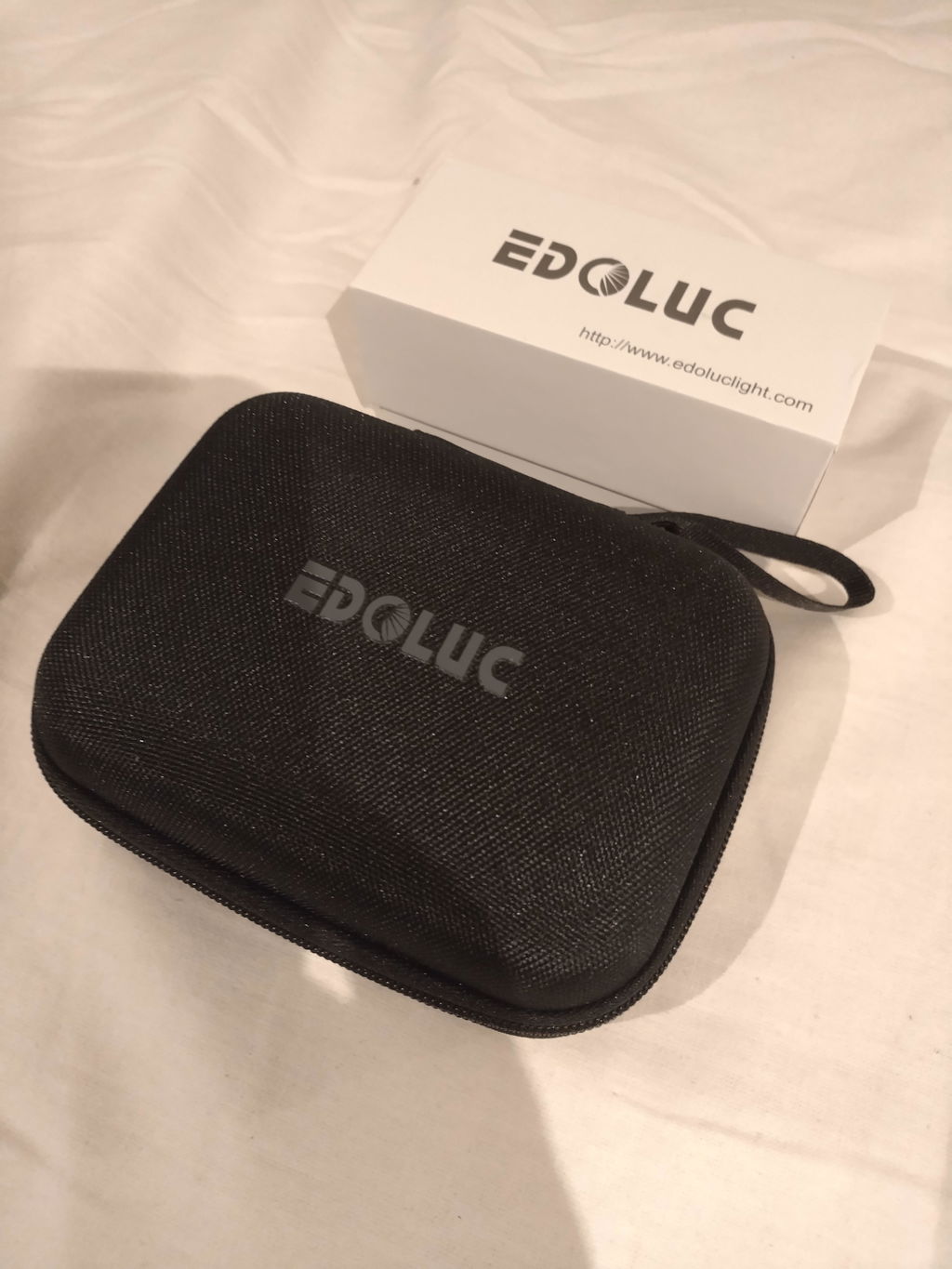

Packaging : 1pc with a Pouch

Features

Entering Programming Mode:

Turn on the flashlight and quickly half-press the tail switch more than 8 times. When the LED flashes rapidly, it indicates that the flashlight has entered programming mode.

Programming Mode Features:

A. Selecting Output Groups (5 Groups Available):

After entering programming mode:

• The LED will flash slowly once, followed by a series of fast flashes.
• Press the switch during the fast flashes to enter the mode selection process.

How to select output groups:

• Slow flash 1 time, followed by fast flashes: Press the switch to select Group 1.
• Slow flash 2 times, followed by fast flashes: Press the switch to select Group 2.
• Slow flash 3 times, followed by fast flashes: Press the switch to select Group 3.
• Slow flash 4 times, followed by fast flashes: Press the switch to select Group 4.
• Slow flash 5 times, followed by fast flashes: Press the switch to select Group 5.

If no selection is made for a given option, the cycle will repeat once. If no option is selected after two cycles, the flashlight will exit programming mode.

Output Groups:

1. Moonlight - 40%
2. Moonlight - 30% - 100%
3. Moonlight - 5% - 30% - 100%
4. Moonlight - 30% - 100% - Strobe
5. Moonlight - 10% - 50% - Strobe - SOS

Default Factory Setting:
Group 2: Moonlight - 30% - 100%, Memory OFF.

B. Enabling or Disabling Memory Function (Default: Disabled)

• In programming mode, the LED will slow flash 2 times, followed by fast flashes. During the fast flashes, press the switch to toggle memory mode on/off.

C. Enabling or Disabling Moonlight Mode

• In programming mode, the LED will slow flash 3 times, followed by fast flashes. During the fast flashes, press the switch to enable or disable Moonlight mode.

D. Changing Mode Order (Default: Low → Medium → High)

• In programming mode, the LED will slow flash 4 times, followed by fast flashes. During the fast flashes, press the switch to change the order to High → Medium → Low.

E. Restoring Factory Settings

(Default settings: Memory OFF, Moonlight mode ON, Low → Medium → High order)

• In programming mode, the LED will slow flash 5 times, followed by fast flashes. During the fast flashes, press the switch to restore factory settings.

Switch Functions:

• Half-press (light press): Cycle through modes.
• Double press quickly: Activate 70% brightness.
• Triple press quickly: Activate strobe mode.

*Use of light in “strobe” mode may cause seizure in persons with photosensitive epilepsy.*
